With this dynamic evolution of MOTOTRBO digital two-way radios, you're better connected, safer and more productive. The XPR 5000e Series is designed for the skilled professional who refuses to compromise. With high-performance integrated voice and data, and advanced features for efficient operation, these next-generation radios deliver complete connectivity to your organization.
Here's what's new in these next-generation radios:

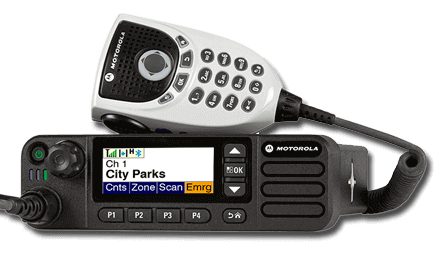

XPR 5000e Series radios include:
XPR 5550e: Color alphanumeric display, VHF and UHF
XPR 5580e: Color alphanumeric display, 800/900
XPR 5350e: Numeric display, VHF and UHF
XPR 5380e: Numeric display, 800/900
Frequency Band:
VHF, UHF-1, UHF-2, 800 MHz, 900 MHz
Frequency Range:
VHF: 136-174 MHz
UHF Band 1: 403-470 MHz
UHF Band 2: 450-512 MHz
800/900: 806-825 MHz; 851-870 MHz; 896-902 MHz; 935-941 MHz
Power Output:
High Power Output:
VHF: 25-45 W
UHF Band 1: 25-40 W
UHF Band 2: 1-40 W
800: 10-35 W
900: 10-30 W
Number of Channels/Groups/Zones:
32 / 1000 Channels
Low Power Output:
VHF: 1-25 W
UHF Band 1: 1-25 W
Dimensions H x W x D (with standard battery)
2.1 x 6.9 x 8.1 in (53 x 175 x 206 mm)
Weight (with standard battery)
3.9 lb. (1.8 kg)
Keypad / Keys
None
Display
Numeric, LED indicators , Monochrome, Alphanumeric, Color, Day and night mode
Operating temperature
-22 °F to 140 °F (-30 °C to +60 °C)
Mil spec
810 C, 810 D, 810 E, 810 F, 810 G
IP Standards
IP54
Connected
The XPR 5000e Series is a family of DMR-standard digital radios that delivers operations-critical voice and data communications. Bluetooth® audio lets you talk without wires, integrated Wi-Fi enables remote software updates and indoor and outdoor location-tracking capabilities give you total visibility of your resources. With support for trunking as well as legacy analog technology, you can keep your organization connected as it grows.
Productive
Text messaging and Work Order Ticketing simplify complex communications, and data capabilities support advanced applications. Featuring a high power audio amplifier, these radios deliver loud, clear speech, with background noise cancellation for better intelligibility. XPR 5000e Series radios are also ideal as a dispatch solution, with desktop microphones and a rugged, durable design for everyday use.
Safe
Safeguard your staff with responsive push-to-talk technology. The quick access buttons on XPR 5000e Series radios can summon help with one touch, using Transmit Interrupt to clear a channel when necessary. A range of safe driving accessories allows your workers to communicate hands-free and text-to-speech technology helps your drivers keep their eyes on the road.
From the production line to the power line, MOTOTRBO radios are helping people work more efficiently, productively and safely. MOTOTRBO delivers game-changing advantages along with business-essential systems, applications and accessories.
What if you could increase productivity by giving your workers different communications tools to satisfy their specific jobs, and still keep everyone connected? Now you can, with the MOTOTRBO family of digital two-way radios -- optimized to work together, while meeting the unique needs of every user.
With the industry's largest selection of data applications, MOTOTRBO™ offers the best way of expanding communications beyond voice.
MOTOTRBO Capacity Max builds on Motorola's extensive real-world experience of trunked radio systems and the latest technology to deliver a scalable solution that's perfect for your business. With an architecture optimized for high-performance, high efficiency and graceful scalability, Capacity Max can deliver better collaboration and worker safety to your business – whether it's a single campus or an international operation.
 | PMAE4030 GPS/UHF Combination 1/4 Wave Antenna for the 403-430 MHz range |
 | PMAE4031 GPS/UHF Combination 1/4 Wave Antenna for the 450-470 MHz range |
 | PMAE4032 GPS/UHF Combination Antenna for the 406-420 MHz range, 3.5 dB Gain |
 | PMAE4033 GPS/UHF Combination Antenna for the 450-470 MHz range, 3.5 dB Gain |
 | PMAE4034 GPS/UHF Combination Antenna for the 450-470 MHz range, 5 dB Gain |
 | HAE6019 GPS/UHF Combination Antenna for the 403-527 MHz range, 2 dB Gain |
 | HAE6020 GPS/UHF Combination 1/4 Wave Antenna for the 470-527 MHz range |
 | HAE6024 GPS/UHF Combination Through-Hole Mount Antenna for 470-494 MHz, 3.5 dB Gain |
 | HAE6026 GPS/UHF Combination Through-Hole Mount Antenna, 494-512 MHz, 3 dB Gain |
 | HAE4010 UHF Wide Area Through-Hole Mount Antenna for the 406-420 MHz range, 3.5 dB Gain, Mini-U |
 | HAE4011 UHF Wide Area Through-Hole Mount Antenna for the 450-470 MHz range, 3.5 dB Gain, Mini-U |
 | HAE4012 UHF Wide Area Through-Hole Mount Antenna for the 470-494 MHz range, 3.5 dB Gain |
 | HAE6022 UHF Wide Area Through-hole Mount Antenna for the 403-527 MHz range 2dB Gain, Mini-U |
 | RAE4004ARB UHF Wide Area Through-Hole Mount Antenna for the 445-470 MHz range, 5 dB Gain, Mini-U (with base) |
 | HAE4002 UHF Urban Roof Mount 1/4 Wave Antenna for the 403-430 MHz range, Mini-U |
 | HAE4003 UHF Urban Roof Mount 1/4 Wave Antenna for the 450-470 MHz range, Mini-U |
| HAE4004 UHF Urban Roof Mount 1/4 Wave Antenna for the 470-512 MHz range, Mini-U |
 | HAE4013 UHF Wide Area Roof Mount Antenna for the 494-512 MHz range, 3.5 dB Gain |
| RAE4163ARB UHF Stubby Through hole Mount Antenna, 410-430 MHz |
 | RAE4164ARB UHF Stubby Through hole Mount Antenna, 430-450 MHz |
| RAE4168ARB UHF Stubby Through hole Mount Antenna, 450-470 MHz |
| PMAE4039 UHF Antenna Kit 403-430 MHz, 1/4 Wave |
| PMAE4041 UHF Antenna Kit 450-470 MHz, 1/4 Wave |
| PMAE4042 UHF Antenna Kit 450-470 MHz, 3.5 dB Gain |
| PMAE4043 UHF Antenna Kit 450-470 MHz, 5.0 dB Gain |
| HAE6030 UHF Antenna Kit 470-527 MHz, 1/4 Wave, Through-hole Mount |
| HAE6029 UHF Antenna Kit 403-527 MHz, 2 dB Gain, Through-hole Mount |
| HAE6028 UHF Antenna Kit 470-494 MHz, 3 dB Gain, Through-hole Mount |
| HAE6027 UHF Antenna Kit 494-512 MHz, 3 dB Gain, Through-hole Mount |
| RAD4214 GPS/VHF Combination Through-Hole Mount 1/4 wave Antenna for the 136-144 MHz range |
| RAD4215 GPS/VHF Combination Through-Hole Mount 1/4 wave Antenna for the 146-150.8 MHz range |
| RAD4216 GPS/VHF Through-Hole Mount 1/4 wave Antenna for the 150.8-162 MHz range |
| RAD4217 GPS/VHF Through-Hole Mount 1/4 wave Antenna for the 162-174 MHz range |
| RAD4218 GPS/VHF Through-Hole Mount Antenna for the 146-172 MHz range, 3 dB Gain |
 | HAD4006 VHF Urban Roof Mount 1/4 Wave Antenna for the 136-144 MHz range, Mini-U |
 | HAD4007 VHF Urban Roof Mount 1/4 Wave Antenna for the 146-150.8 MHz range, Mini-U |
 | HAD4008 VHF Urban Roof Mount 1/4 Wave Antenna for the 150.8-162 MHz range, Mini-U |
 | HAD4009 VHF Urban Roof Mount 1/4 Wave Antenna for the 162-174 MHz range, Mini-U |
 | HAD4022 VHF Wide Area Through-hole Mount Antenna for the 132-174 MHz range 3dB Gain, Mini-U |
 | PMAN4000 Fixed Mount GPS Active Antenna |
 | PMAN4001 Glass Mount GPS Active Antenna |
 | PMAN4002 Magnetic Mount GPS Active Antenna |
 | HAF4029 GPS/800/900 MHz 1/4 Wave Through-Hole Mount Combination Antenna for the 806-941 MHz range |
 | HAF4030 GPS/800/900 MHz Through-Hole Mount Combination Antenna for the 806-941 MHz range, 3 dB Gain |
 | HAF4032 GPS/800/900 MHz Stubby Antenna for the 806-941 MHz range |
 | HAF4033 GPS/800/900 MHz Through-Hole Mount Antenna for the 806-941 MHz range, 5 dB Gain |
| PMAN4004 Kit, Combination GPS+RF, Base Only, Through-hole Mount, Mini-U |
 | HAF4013 Wide Area Through-Hole Mount Stubby Antenna for the 806-941 MHz range, 3 dB Gain |
 | HAF4025 Urban Through-Hole Mount 1/4 Wave Antenna for the 806-941 MHz range |
 | HAF4026 Wide Area Through-Hole Mount Antenna for the 806-941 MHz range, 3 dB Gain |
 | HAF4027 Wide Area Through-Hole Mount Antenna for the 806-941 MHz range, 5 dB Gain |
 | HKN9088 Mobile Mini-U Antenna Adapter, 8-foot cable |
 | HKN9557 PL259/Mini-U Antenna Adapter, 8-foot cable |
 | RSN4005 Desktop Tray with speaker |
 | GLN7318 Desktop Tray without speaker |
| HKN9088 Adapter Cable for Control Station |
 | HPN4007 Power Supply, 25-60W, 1-60W cord included |
 | GPN6145 Switchmode Power Supply, 1-25W radios only with provision for back-up battery hook-up |
 | GKN6266 Power Supply Cable for GPN6145 |
| 3060665A04 US Line cord for GPN6145 |
| HKN9557 Mini-UHF to PL259 antenna adapter cable |
 | RLN6466 Low Profile Trunnion Kit keeps radio tucked up under dash |
 | RLN6467 High Profile Trunnion Kit with under dash or floor mount |
 | RLN6468 Key Lock Trunnion Kit provides extra protection from theft |
 | RLN6465 Direct In Dashboard Mounting Kit |
| PMLN6404A MOTOTRBO Mobile Remote Mount Adapter Kit |
 | PMKN4144 Mobile Remote Mount 5-Meter Cable Kit |
 | PMKN4143 Mobile Remote Mount 3-Meter Cable Kit |
 | HKN4191 Power Cable to Battery, 10 foot, 20 amp for 1 to 60W radios, 12 AWG |
 | HKN4192 Power Cable to Battery, 20 foot, 20 amp for 1 to 60W radios, 10 AWG |
 | HKN4137 Power Cable to Battery, 10 foot, 15 amp for 1 to 25W radios, 14 AWG |
 | RKN4136 Ignition Sense Cable |
| PMKN4010 Mobile and Repeater Rear Accessory Programming Cable |
| PMKN4016 Mobile and Repeater Rear Programming, Test and Alignment Cable |
| PMKN4018 Mobile Rear Accessory Connector Universal Cable |
 | HKN6184 Mobile Front Programming Cable |
| PMLN5072 Hardware Kit for Rear Accessory Connector |
 | RLN5926 Pushbutton push-to-talk to interface with your visor microphone |
 | RLN5929 Emergency Footswitch can be used with a visor microphone |
 | RMN5127 IMPRES Keypad Microphone with 4-way navigation button |
 | PMLN7131 MOTOTRBO Mobile Handheld Control Head Upgrade Kit with 3M Straight Cable |
 | PMKN4174 MOTOTRBO Mobile Handheld Control Head 5 Meter Straight Extension Cable |
 | RMN5052 Standard Compact Microphone |
 | RMN5053 IMPRES Heavy-Duty Microphone |
 | HMN4098 IMPRES Telephone Style Handset |
 | RMN5054 IMPRES Visor Microphone |
| RMN5050 Desktop Microphone |
 | HLN9073 Microphone Hang-Up Clip (Requires installation) |
 | HLN9414 Universal Microphone Hang-Up Clip (No installation required) |
 | PMKN4033 10-Foot Mobile Microphone Extension Cable |
 | PMKN4034 20-Foot Mobile Microphone Extension Cable |
| RSN4002 13W External Speaker |
| RSN4003 7.5W External Speaker |
| RSN4004 5W External Speaker |
 | RLN6551 Long Range Wireless Kit with charger Includes: Long Range Wireless RSM; Mobile Mic Bluetooth Gateway; Vehicular Charger |
| RLN6552 Long Range wireless kit Includes: Long Range Wireless RSM; Mobile Mic Bluetooth Gateway |
 | PMLN7120 Dual unit charger (Charger base with US power supply) |
| 25012022001 Power Supply for Dual Unit Charger US |
| PMMN4097 Mobile Microphone with Bluetooth Gateway |
 | RLN6544 Wireless RSM (Remote Speaker Microphone) with Battery and Clip |
| PMNN4461 Wireless RSM Battery, 1750mA Li-Ion 3.6 VDC |
 | PMLN6716 Vehicular Charger with coil cord cigarette lighter plug |
 | HLN5391 Hang Up Clip, required for vehicular charger |
| 42009312001 D Ring Swivel Clip |
 | RLN4941 Receive-Only Earpiece with Comfort Eartube |
 | AARLN4885 Receive-Only Earbud |
 | NNTN8125 Operations-Critical Wireless Earpiece with 12-inch cable |
 | PMLN7052 Operations-Critical Wireless 1-Wire Surveillance kit with quick disconnect translucent tube |
 | NNTN8294 Operations-Critical Wireless Earbud with 11.5-inch cable |
 | NNTN8295 Operations-Critical Wireless Earbud with 45-inch cable |
 | NNTN8127 Operations-Critical Wireless push-to-talk pod |
| PMLN6500 Bluetooth Accessory Kit with swivel earpiece and battery clip (PTT on radio or with separate wireless PTT) |
 | PMLN7181 Bluetooth Accessory Kit with Flexible Fit swivel earpiece with Boom Microphone and charging cradle (PTT on radio or with separate wireless PTT) |
 | RLN6490 XBT Operations-Critical Wireless Behind-the-Neck Headset |
 | RLN6491 XBT Operations-Critical Wireless Headband Style Headset |
 | NTN2572 Mission-Critical/Operations-Critical Replacement Wireless Earpiece with 12-inch cable |
 | NTN8821 Wireless Earpiece Maintenance Kit with 10 silicone ear tubes, 10 microphone seal strips and 2 foam windscreens |
 | NTN8988 Ear strap for comport earpiece (pack of 10) |
 | RLN5037 Eartube for comport earpiece (pack of 10) |
| NNTN8361 Replacement ear tips for wireless earbuds (20 small, 20 medium, 20 larger and 10 clips) |
| PMPN4027 Replacement or spare micro-USB plug-in charger (US plug) for wireless pod |
| PMLN6246A Swivel clip for Operations-Critical Wireless pod and Enhanced Operations-Critical Wireless pod |
| RLN6550 Swivel Earpiece with in-line microphone Multi-Pack (3 pack) for MOTOTRBO Bluetooth Accessory Kit |
| PMLN7203 Flexible Fit Swivel Earpiece with Boom Microphone Multi-Pack (3 pack) for MOTOTRBO Bluetooth Accessory Kit |
The Motorola XPR 5300e Series is available in the following models.
Motorola XPR 5350e
Motorola XPR 5380e
